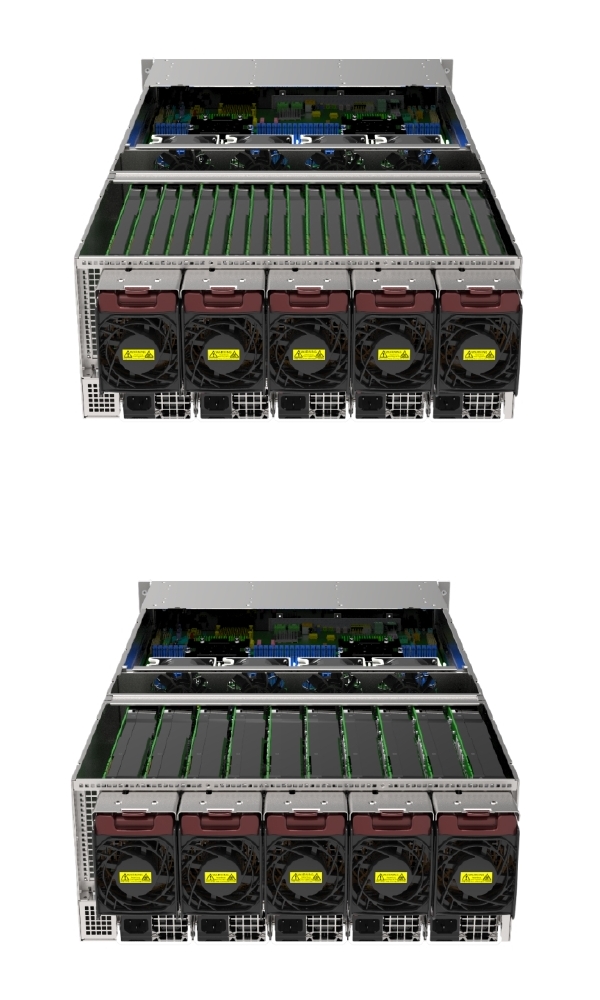

| Physical Status |
| Form Factor | Proprietary |
| Dimensions | 16.93'x 13.78' |
| Processor System |
| CPU | Supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| Socket | Dual Socket SP5 (LGA 6096) |
| Chipset | System on Chip |
| System Memory |
| Supported DIMM Quantity | 12+12 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM,RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 96GB (2R)
RDIMM-3DS: 512GB (2S8Rx4) |
| Max. DIMM Frequency | 4800MHz |
| Voltage | 1.1V |
| Other PCIe Expansion Connectors |
| M.2 slot | M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU0]
M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU1] |
| Others | 6 MCIO (PCIe5.0 / CXL1.1 x8) [CPU0]
2 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s) [CPU0]
2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s) [CPU0]*
6 MCIO (PCIe5.0 / CXL1.1 x8) [CPU1]
2 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s) [CPU1]
2 MCIO (PCIe5.0 x8) [CPU1]
1 SlimSAS (PCIe3.0 x2)***MCIO9, 10 support PCIe only while installing 2 processors
**SlimSAS (by jumper setting):
1. PCIe3.0 x2 when M2_1 supports only PCIe3.0 x2 or SATA 6Gb/s
2. No function when M2_1 supports PCIe3.0 x4 or SATA 6Gb/s |
| SATA/SAS Storage |
| PCH Built-in Storage | AMD EPYC™ 9004 (Up to 32 SATA 6Gb/s): 4 MCIO |
| Additional SATA Controller | ASM1061 (2 SATA 6Gb/s): 2 M.2 |
| Ethernet |
| | Intel® i350: 2 RJ45 (1GbE) |
| Server Management |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O |
| UID Button/LED | 1 UID button w/ LED |
| Other Button/LED | 1 PWR button, 1 RST button, 1 NMI button, 1 HDD LED, 1 SYS LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) 1 dedicated IPMI |
| Internal Connector/Headers |
| Power Connector | 6 Micro-hi (8-pin, ATX 12V), 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Fan Header | 6 (6-pin) |
| TPM Header | 1 (13-pin,SPI) |
| SGPIO Header | 4 |
| HSBP | 1 |
| SMBus header | 4 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 2 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators |
| Standby PWR LED 5vsb | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
| System BIOS |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1,
P0_VDDCR_SOC, P0_VDD_18_DUAL,
P0_VDD_11_S3, P0_VDDIO,
P1_VDDCR_CPU0, P1_VDDCR_CPU1,
P1_VDDCR_SOC, P1_VDD_18_DUAL,
P1_VDD_11_S3, P1_VDDIO, +BAT,
+12V, +3VSB, +5VSB |
| Environment |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70° |
| Humidity | Non operation humidity: 20% ~ 90% (Non condensing) |
